Parameters of Belf Conveyor
| Width(mm) | Length(m)/Power(kw) | Speed(m/s) | Capacity(t/h) | ||
| 400 | ≤12/2.2 | 12~20 /2.2~4 | 20~25/3.5~7.5 | 1.25~2.0 | 30~60 |
| 500 | ≤12/3 | 12~20/3~5.5 | 20~30/5.5~7.5 | 1.25~2.0 | 40~80 |
| 650 | ≤12/4 | 12~20/4~5.5 | 20~30/5.5~11 | 1.25~2.0 | 80~120 |
| 800 | ≤10/4 | 10~15/4~5.5 | 15~30/5.5~15 | 1.25~2.0 | 120~200 |
| 1000 | ≤10/5.5 | 10~20/5.5~11 | 20~40/11~22 | 1.25~2.0 | 200~320 |
| 1200 | ≤10/7.5 | 10~20/7.5~15 | 20~40/15~30 | 1.25~2.0 | 290~480 |

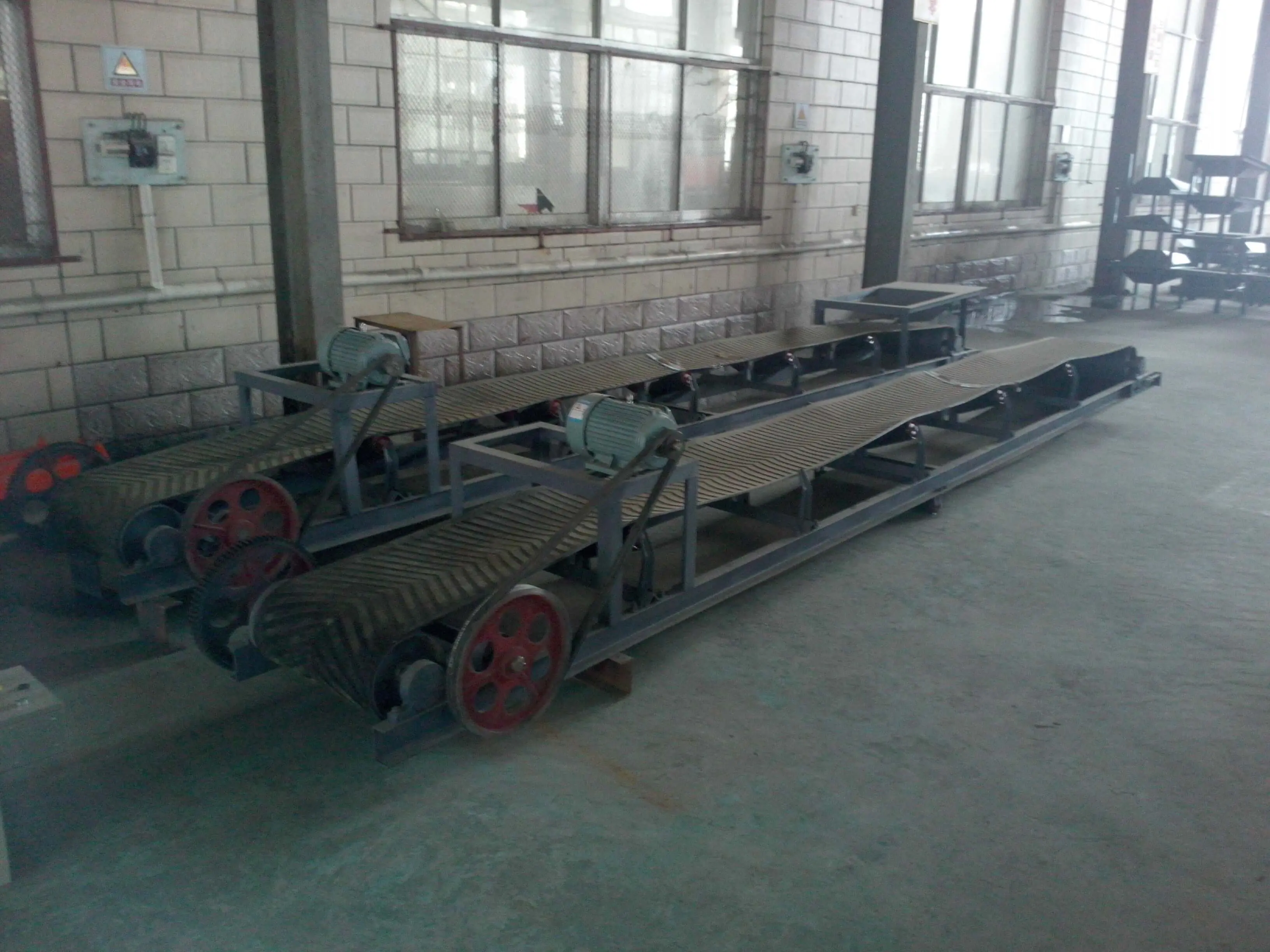

Belt conveyor are the most commonly used bulk handling conveyors in history due to their reliability, versatility, and range of capacities. Materials from small granules to large, lumpy stones can be handled on a belt conveyor, and these conveyor belts are used in a wide variety of material transport applications such as manufacturing, food processing, and heavy industry like fertilizer indrustry,mining industry,animal feed production industry and so on.
belt conveying system is mainly made up of the racks, belts, rollers, tensioning means and the drive means. In the process of conveying, the material can be put on the belt, which can be conveyed from one end to the other end by the force device. Convey belt can help to form one conveying process from the origin feeding place to the discharging place, which can convey the scattering material and the finished products.

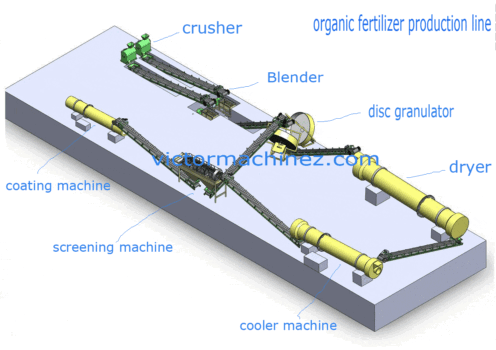

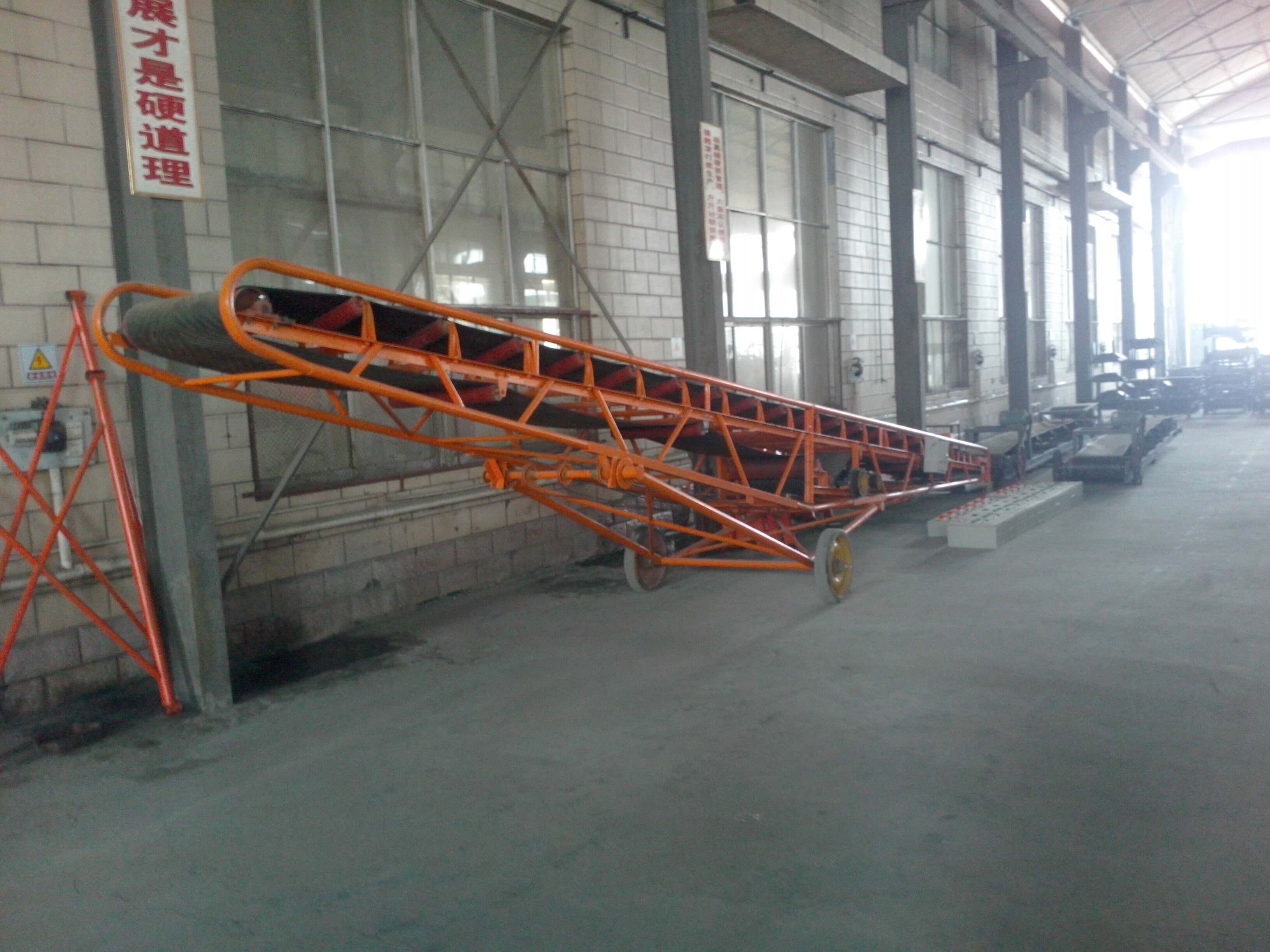

Belt conveyor has types including fixed belt conveying system, and movable belt conveyor.This machine also can form one flow process line with the rhyme according to the requirement on the craftsmanship of various mining industries except for the pure conveying materials.this belt conveyor machine is used organic fertilizer production plant and compound fertilizer production line.
Application of belt conveyor
Belt conveyor has types including fixed belt conveying system, and movable belt conveyor,but their application mainly has several points ,it is a key equipment in fertilizer production line.
· Agriculture
· Construction – heavy building materials
· Food and beverage processing
· Forestry – logging, sawmill, paper pulp, etc.
· Mining and quarrying
· Factory production line
