specification of horizontal fertilizer blender
Type | Capacity(t/h) | Power(kw) |
600×1200 | 2~3 | 5.5 |
700×1500 | 3~5 | 7.5 |
900×1500 | 4~8 | 11 |
1000×2000 | 8~10 | 15 |
specification of pan vertical fertilizer blender
Type | Mixer | Speed (r/min) | Power(kw) | Capacity(t/h) | |
Diameter(mm) | The wall height(mm) | ||||
PJ1600 | 1600 | 400 | 12 | 5.5 | 3-5 |
PJ1800 | 1800 | 400 | 10.5 | 7.5 | 4-6 |
PJ2200 | 2200 | 500 | 10.5 | 11 | 6-10 |
PJ2500 | 2500 | 550 | 9 | 15 | 10-16 |

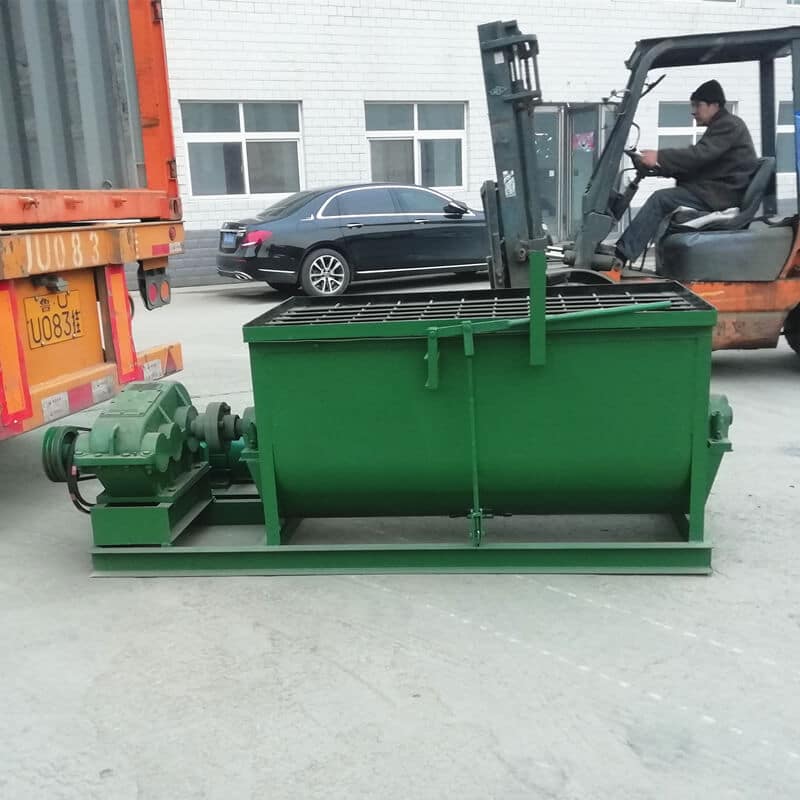

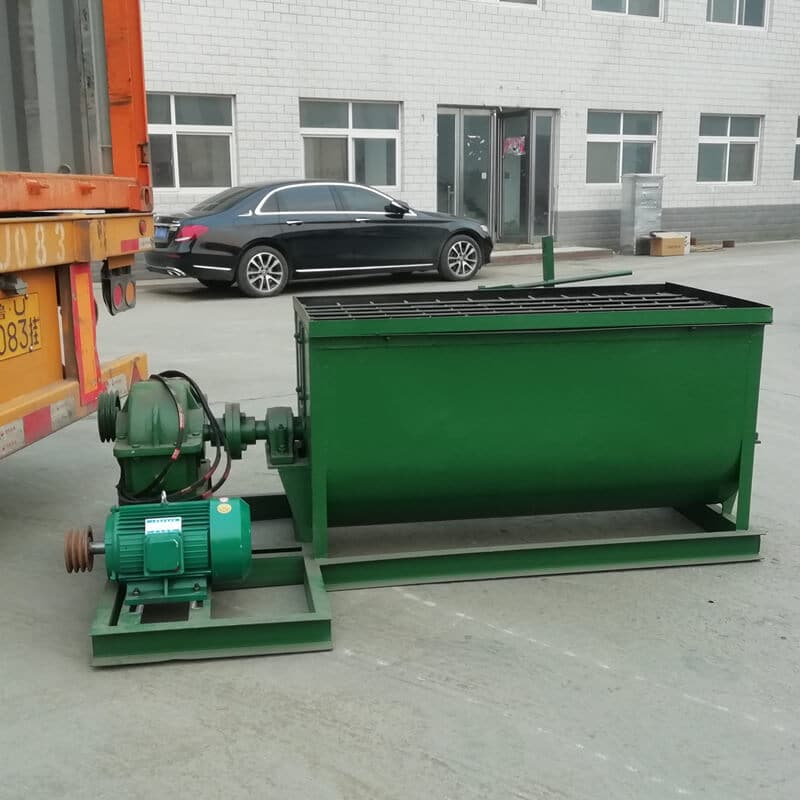

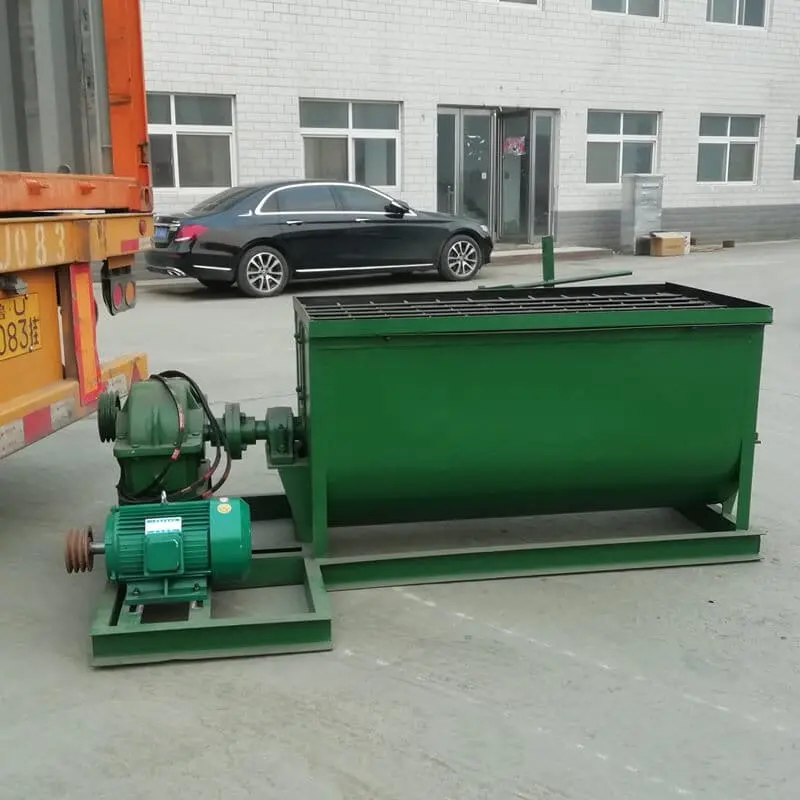

Horizontal fertilizer mixer is our new generation fertilizer application equipment. The materials can be fully mixed. In order to improve the mixing uniformity, new rotor structure is adopted, the rotor near the minimum gap can be adjusted to zero, effectively reducing the material residue, the overall structure is more reasonable, beautiful appearance, easy operation and maintenance. Horizontal fertilizer mixer has Recently developed to accommodate more than 2 kinds of fertilizers and added fertilizers. Mixing fertilizer adequately, with a novel rotor structure, the gap between the rotor and the shell can be adjusted to close to zero
Features of horizontal fertilizer mixer
1. Fully mixing materials, thereby improving the mixed uniformity;
2. Adopting rotor structure, rotor with bright body minimum clearance adjustable to near zero
3. More reasonable body design, excellent in shape, and easy-operation and maintenance.
4. Fast mixing speed, good mixing uniformity, fast discharging speed, low material residual.
5. Adopt stainless steel spiral blade with hard steel tool bit, good wear-resisting performance, long service life.
Introduction of pan fertilizer mixer machine
The disc mixer is mainly used for mixing NPK, DAP and other raw materials in fertilizer. The pallets are lined with polypropylene or stainless steel plates, which can make the raw materials not stick to the inner disc of the fertilizer mixer, this fertilizer mixer mixes evenly and conveys the material with high efficiency . This fertilizer mixer is widely used in fertilizer plant, chemical industry and construction industry. This type of fertilizer mixer is mainly used for compound fertilizer production line.
Advantages of pan fertilizer mixer machine
1.wear resistance, the use of cyclical reducer compact structure,
2.easy operation, uniform mixing, discharge conveyor and convenient.
